$24.90$89.90

WiFi-operated Relay SwitchControl a wide range of home appliances and office equipment (lights, power lines, garage doors, curtains, security syst...

$47.90 $24.90

Hurry, only 144 item(s) left in stock!

WiFi-operated Relay Switch

Control a wide range of home appliances and office equipment (lights, power lines, garage doors, curtains, security systems, heating radiators, air conditioners, etc.)  from anywhere with the smallest WiFi-operated relay switch.

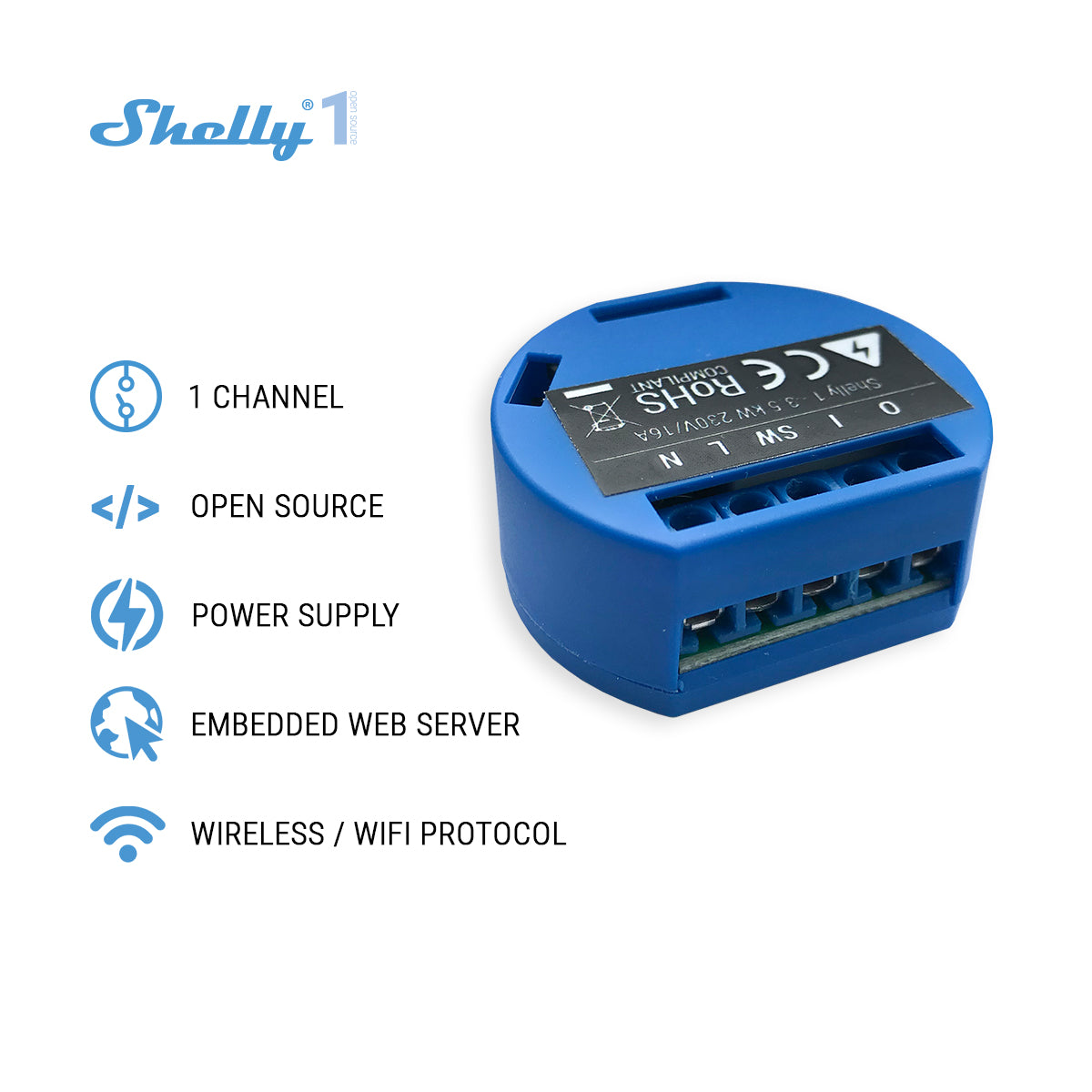

Shelly 1 Open Source

  • has an embedded web server

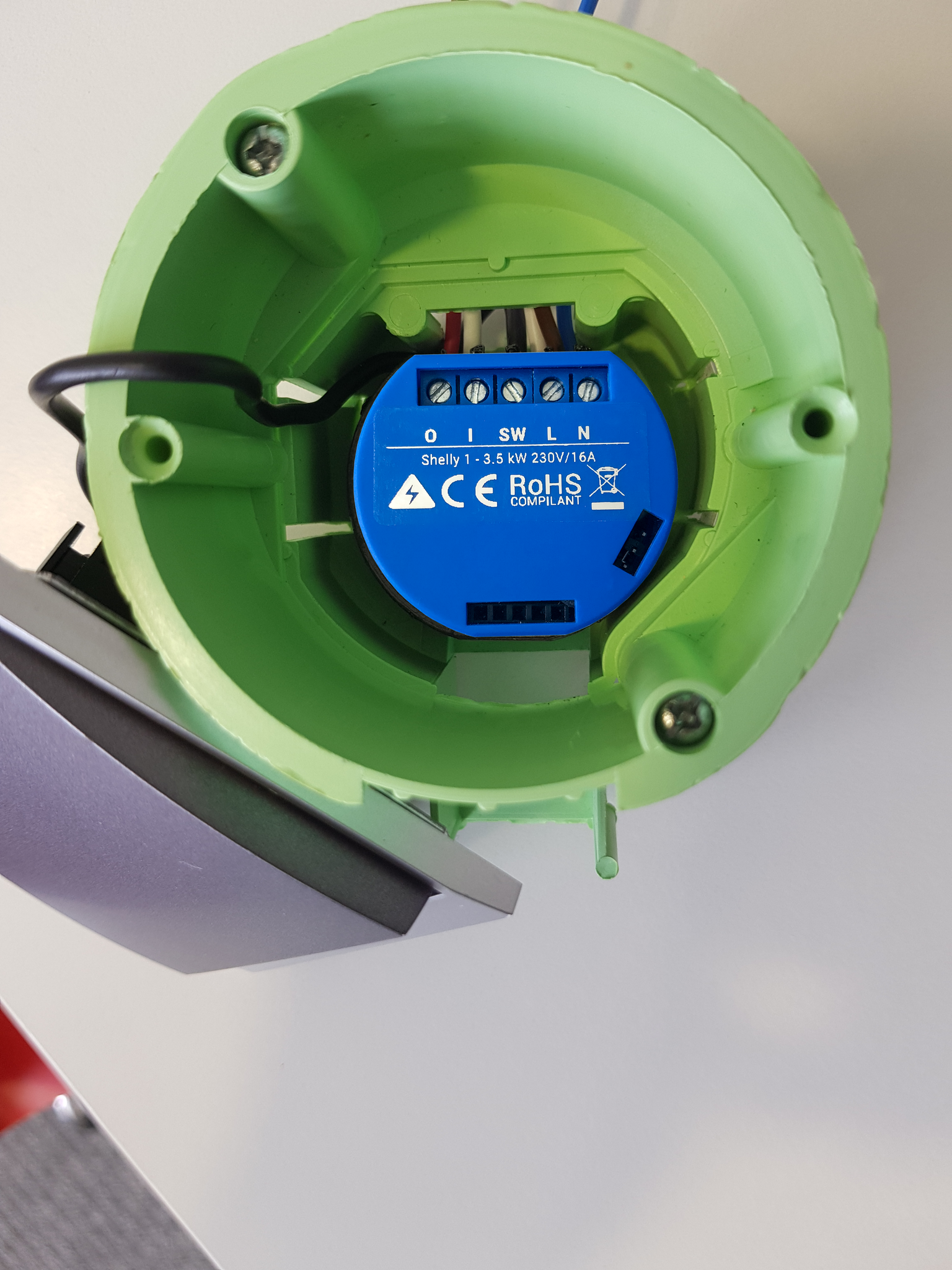

  • has been designed for installation in a limited space, such as wall mounts, electrical control panels, etc.
  • can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system’s component.

Standard warranty(included in purchase price): 24-month warranty due to device malfunctions when it is used in user manual described conditions.
Warranty plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

Description

  • Intelligent On/Off

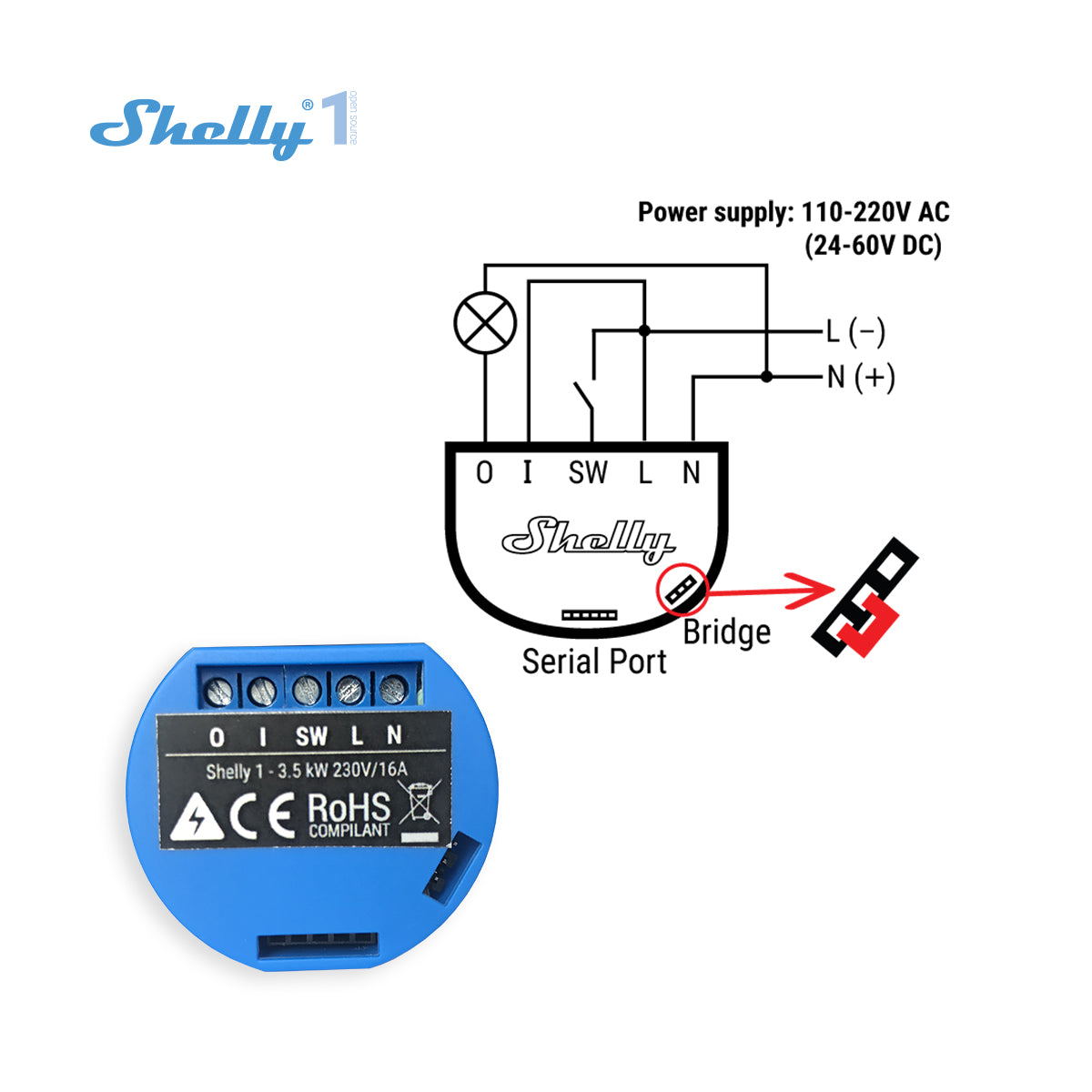

  • Power Supply: 110-230V ±10%, 50/60Hz AC
  • Compatible with all major international voltage standards.
  • Maximum load current per output: 16A 110-265V, 50/60Hz AC
  • Maximum load current per output: 16A 12V DC, 24 – 60V DC
  • Complies with the following EU standards:
  • RE Directive 2014/53/EU
  • LVD 2006/95/WE
  • EMC 2004/108/WE
  • RoHS2 2011/65/UE
  • Operational temperature: -40 to + 40 °C
  • Dimensions (LxWxH): 41 x 36 x 17 mm
  • Minimum mounting opening: Ø ≥ 50mm
  • Radio signal power: 1mW
  • Wireless/WiFi Protocol: 802.11 b/g/n
  • Radio frequency: 2400 – 2500 MHz
  • Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
  • Electrical power consumption < 1 W
  • Microprocessor control
  • Can connect to any Wi-Fi network or can operate as an Access Point
  • Controlled via WiFi and a mobile phone, computer, automation system or any other device supporting HTTP and/or UDP protocol



Technical Specifications

Working Temperature
-40 to + 40 °C
Dimensions
41 x 36 x 17 mm
Power Supply
110-230V ±10%, 50/60Hz AC
Range
Up to 50 m outdoors and up to 30 m indoors
Radio Signal Power
1mW
Radio Protocol
WiFi 802.11 b/g/n
Frequency
2400 – 2500 MHz
