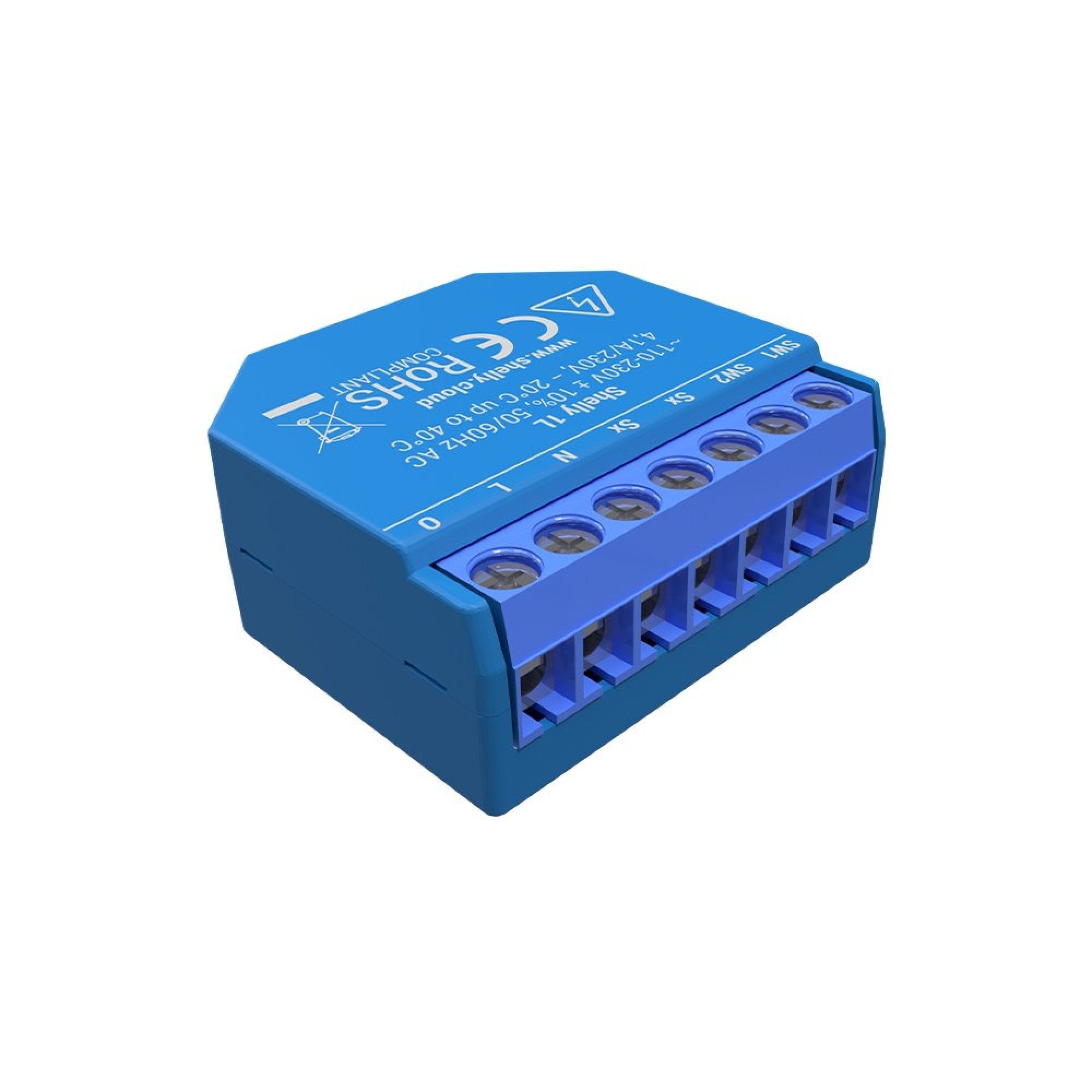

Shelly 1L UL

WiFi-operated Relay Switch

Convert any existing wall switch into a smart switch without changing the wiring or running new cables with Shelly 1L. The first device in the world that is able to automate even the appliances wired with no neutral present. Thanks to its small size and wide range of voltage support, it's a real innovation!

Shelly 1L

• has an embedded web server
• is designed for installation in a limited space, such as wall switches
• can function as a standalone device, as an accessory to a home automation controller, or it may be used as another automation system's component
• can control any other Wi-Fi device in your home
• temperature protection

Standard warranty(included in purchase price): 24-month warranty due to device malfunctions when it is used in user manual described conditions.
Warranty plus: Your product will be replaced (including free shipping) with a new one within 12 months of purchase, even if it is damaged due to improper wiring, incorrect usage, a problem in the electrical installation or any other circumstance.

Description

• Power supply AC: 110-230V ±10%, 50/60Hz
• Power supply DC: No
• Device temperature protection: Yes
• Overload protection: No
• Power measurement: No
• Dimming: No
• Working without a neutral line: Yes
• Channels: 1 Channel
• Maximum load: 4.1A (5A for short operation)
• Minimum load - no neutral connected, with bypass: None
• Minimum load - no neutral connected, without bypass: 20W resistive load
• Minimum load - with neutral connected: None
• Operational temperature: 0°C to + 40 °C
• Device power consumption: < 1 W
• Intelligent On/Off: Yes
• Local and remote control: Yes
• Sunrise/Sunset: Yes
• Weekly Schedule: Yes
• UL Listed option: No
• SUPPORTED LOAD TYPE - WITH AND WITHOUT NEUTRAL
• Capacitive: Motor starting capacitors, Generators, Synchronous motors
• Inductive: Led lights, Transformers, Fans, Motors
• Resistive: Lights, Electric heaters
• Dimmable LED: Yes
• Fluorescent lamps: Yes
• Fluorescent tubes: Yes
• Halogen lamps: Yes
• Incandescent lamps: Yes
• Neon lamps: Yes
• Non Dimmable LED: Yes
• Wireless/WiFi Protocol: 802.11 b/g/n
• Radiofrequency: 2400 - 2484 MHz
• Radio signal power: 1mW
• Range: up to 50 m outdoors and up to 30 m indoors (depending on the building materials)
• Size: 42mm x 36mm x 14 mm
